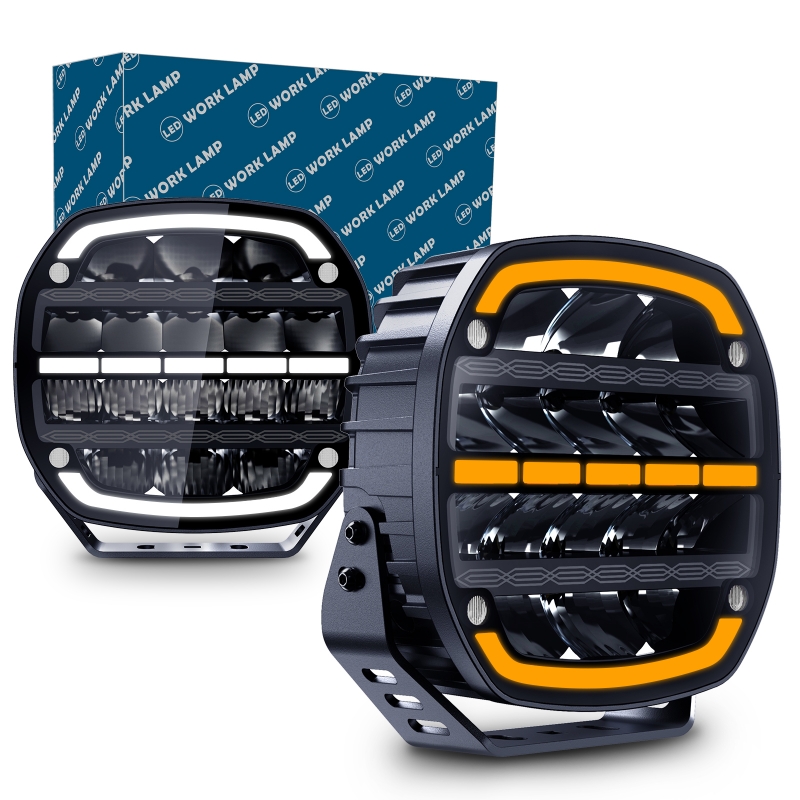

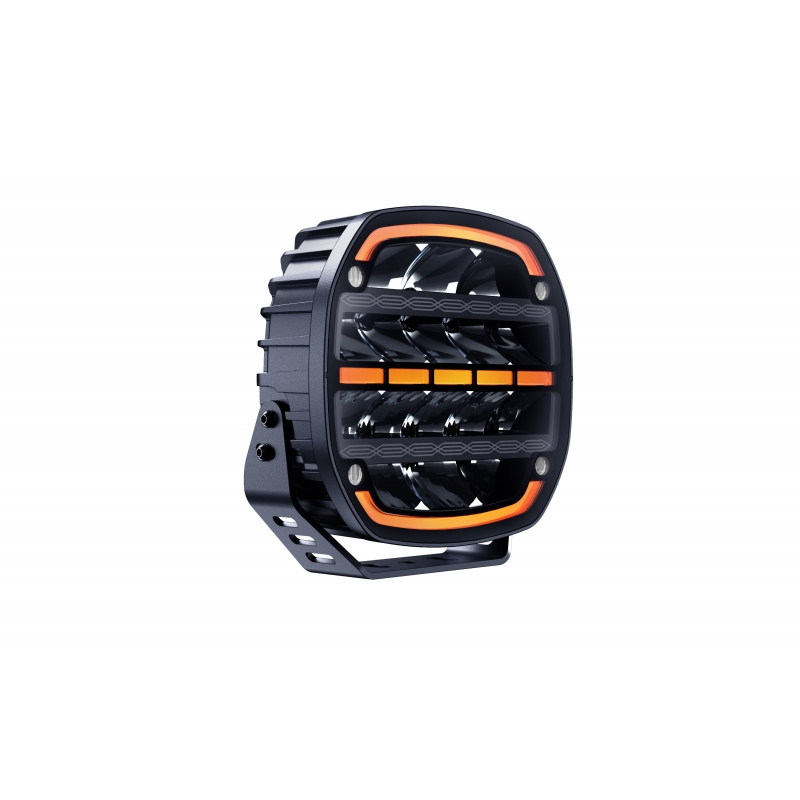

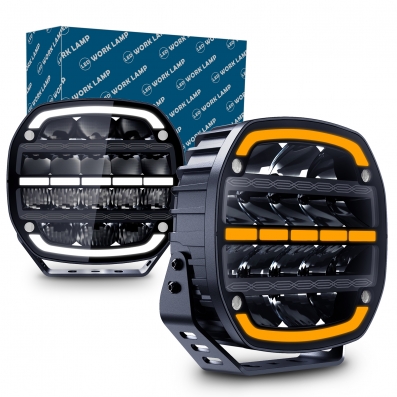

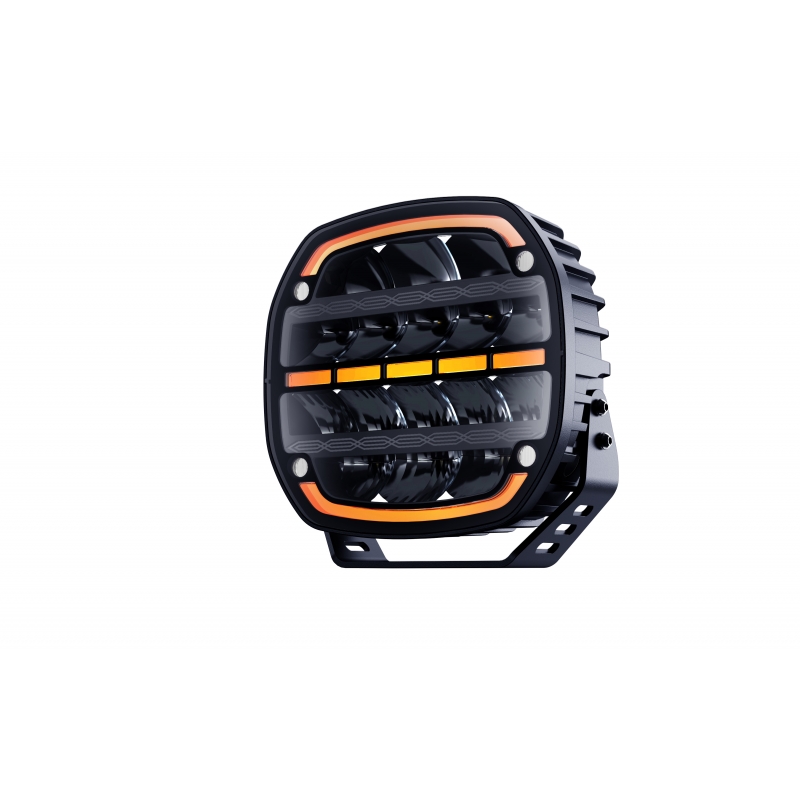

PL-BS9 Max Dynamic 9″ LED Driving Light

Features For BS9 Series LED Driving Lights

1. High power output with a super brightness and perfect beam pattern.
2. Multiple functions with dynamic position lights and strobe lights.
3. Special design with E-mode and Boost Mode
4. Fully Emarked approved with R10 R65 R148 R149.
5. IP68 Water-proof up to 3 meters (10 feet)
6. 5 Years warranty

Product Details

Product Specification
Theoretical Power:                     296W
Actual power:                             180W E-Mode: 90W
Brightness:                                  9600, Boost: 12600

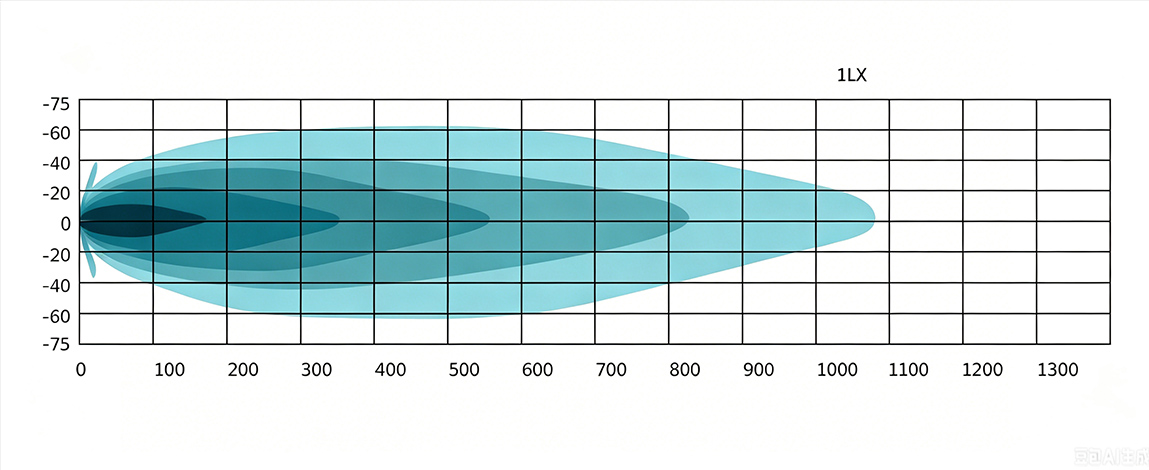

1LUX@:   480Meters, Boost:1100 Meters
Beam Pattern: Driving beam

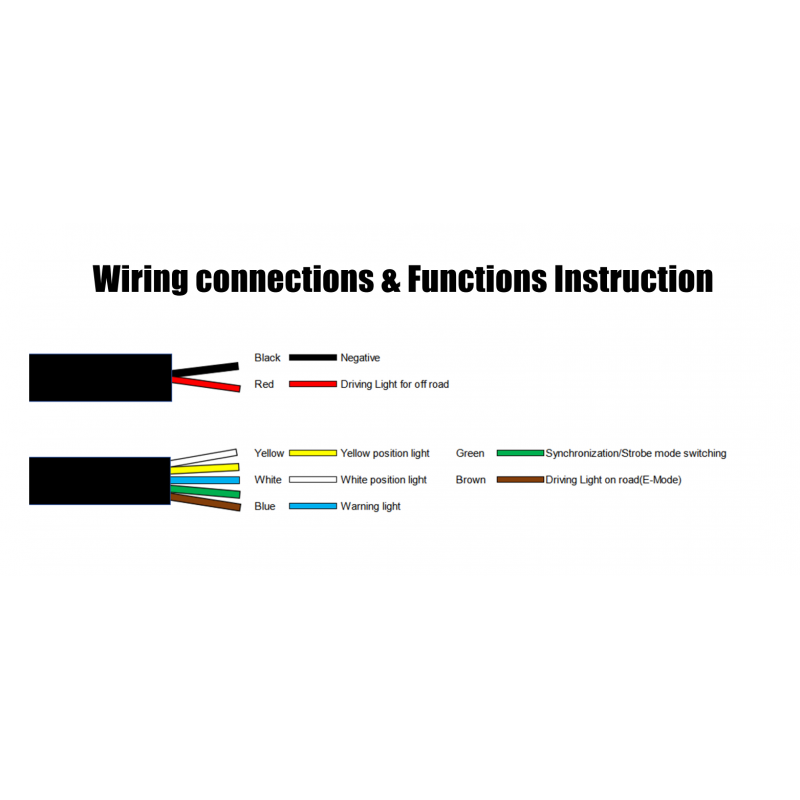

Function:                                    1.Driving(E-mode and off road) ,

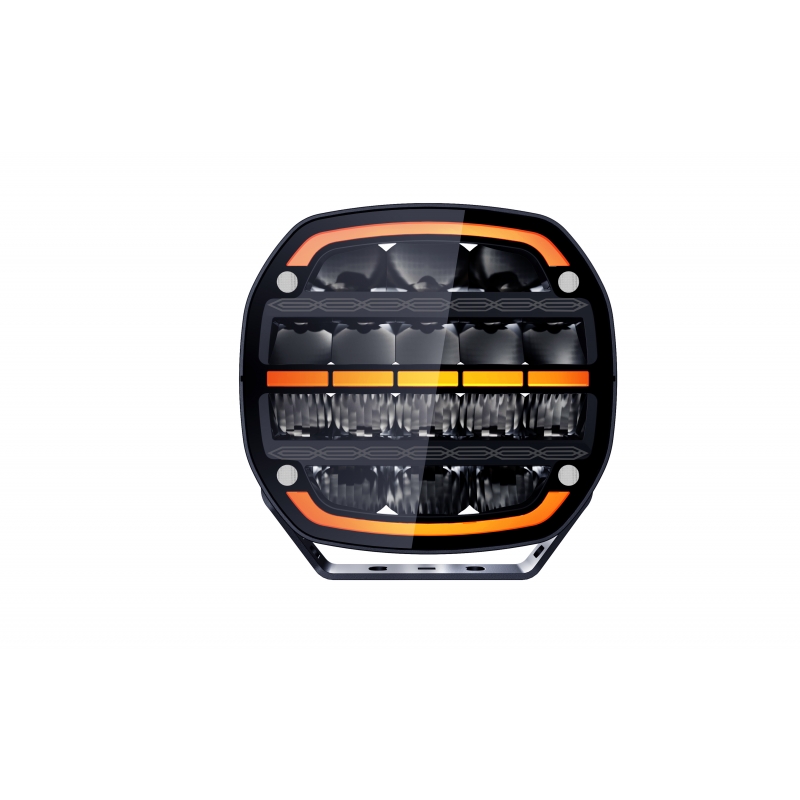

                                                   2.Dynamic White and Amber Position
                                                   3.Strobe Light(4 modes)
Chips:                                         8pcs 25W+8pcs12W
Color temperature：                  6000K-6500K
Working voltage:                        9-32V
Approval:                                    ECE R10, R148, R149 ,R65
Socket:                                        DT
Water-Proof：                            IP68/IP69K

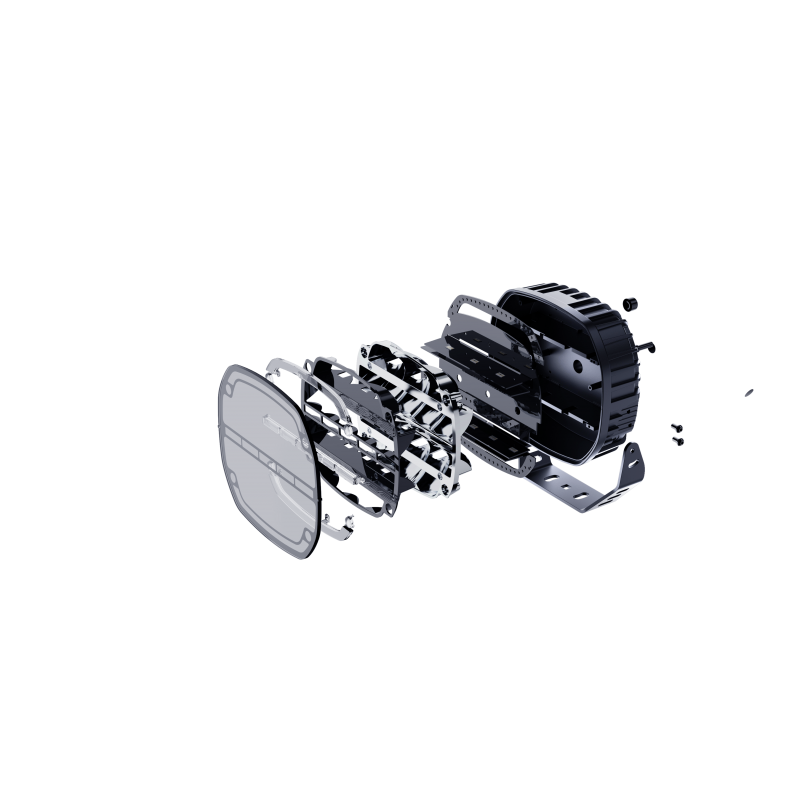

Main Materials:

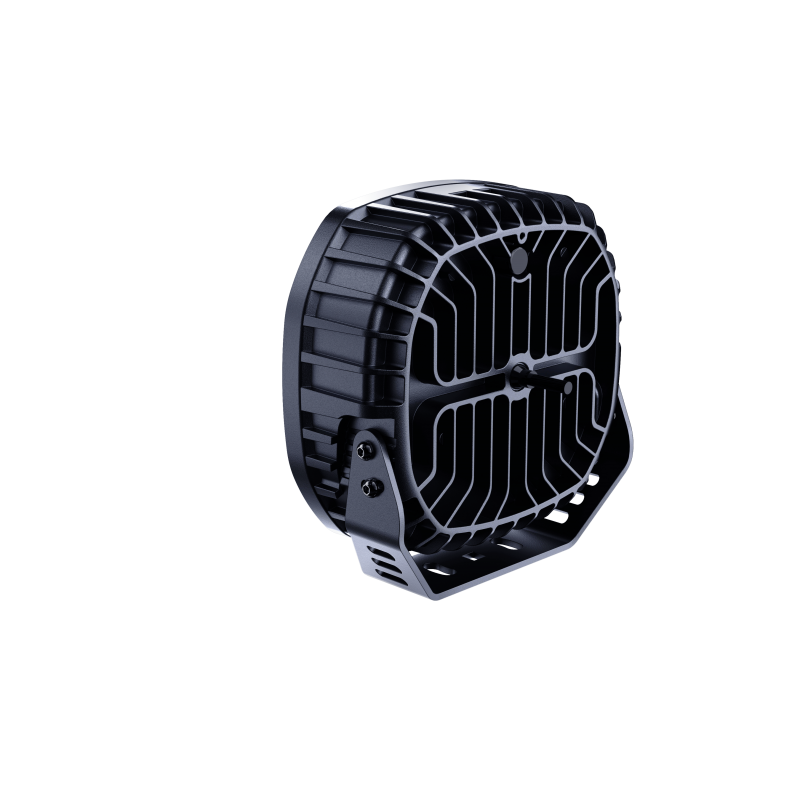

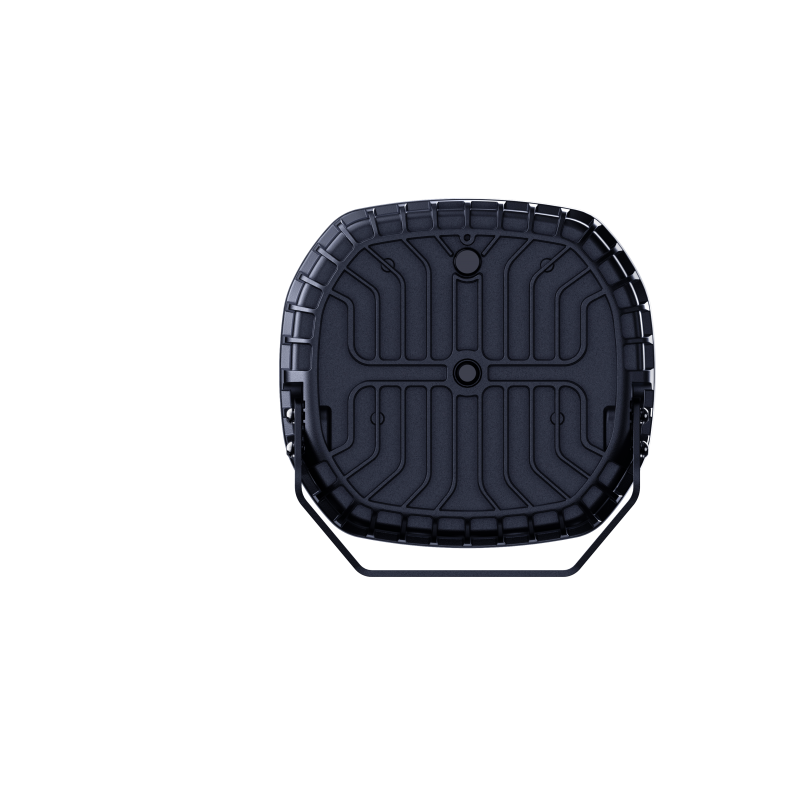

·Die cast aluminum alloy (ADC12) heat-sink
·PC lens
·PVC cable
·Anodized polyester powder-coating
·DT Connector

Protected Against:
·Reverse polarity Protected
·Shock proof,waterproof and UV shielded
·RFI/EMC interference
·Voltage and current surge Protected
·Overheated Protected,Thermal management regulation

1. E-mode
